SUBMERSIBLE DEWATERING PUMPS

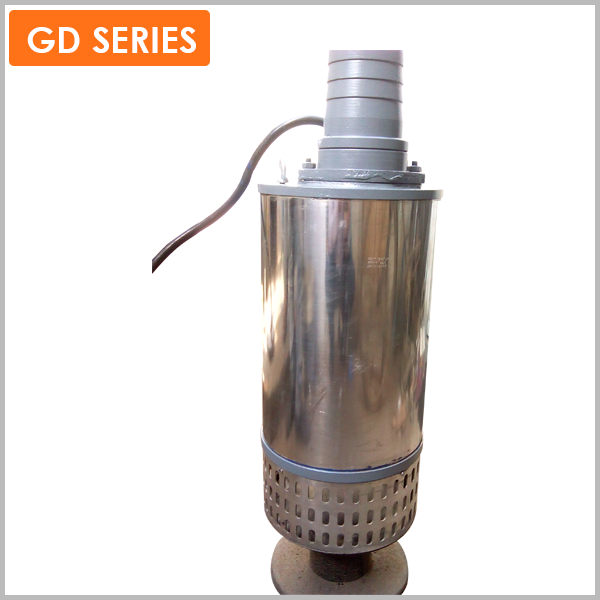

Dewatering Submersible Pump
Technical Specification |
|
| Capacity: | Up To 132 M3/hr |
| Head: | Up To 50 Mtr. |
| Temperature | 70 C° |
| HP: | Up To 50 |
| Speed: | Up To 2900 RPM |
| Dilivery Size: | 1.5 mm To 200 mm |
| Solid Size: | 35 mm |
| Connection: | DOL |
| Voltage & Phase: | 415V, 3 Phase |
| Insulation / Protection: | ' F ' Class / 'H' Class - IP 68 |
| Cable: | PVC/ EPR Insulated Double Seated Copper Conductor Flexible Cable |
| Mechanical Seal: | Double Mechanical Seals(Tungsten Carbide Vs Tungsten Carbide) |
| M.O.C.: | Aluminium Alloy LM-4 / Stainless Steel SS-304 |
| Application: | Muddy Water Transfer, Effluent Transfer, ETP, STP, Wast Water Treatment Plants, Hotel Hospital, Railway, Dairy, Power Plant, Chemical Industries, Suger, Steel, Cement, Food Beverages, Civil Construction-Dewatering Foundations, Trenches & Pits, Public Utilities Etc.. |
